• Country
• Australia

• Manufacturer / Brand
• Palmer, H.G. (HGP, H.G.P.) - H.G. Palmer; Sydney

• Year
• 1965

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 241403

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• 6ES8 6HG8 6U9 6X9 6Y9 6BL8 6M5 6BM8 6BX6 6CM5 6AL3 1S2 unknown_Tube

• Number of Transistors
• 2

• Semiconductors
• OA90 AA119 AA119 OA91 OA91 OA210 OA210

• Main principle
• Superhet with RF-stage; ZF/IF 36000/30500 kHz

• Wave bands
• Wave Bands given in the notes.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Power out
• 6.5 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TRG-1R Ch= 1/07 Ch= 22/01 - Palmer, H.G. HGP, H.G.P. - H.G

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• This B&W television incorporated a 5 valve and 2 transistor broadcast band radio, stereo record player and clock.  The TV tuned the 13 standard Australian VHF channels.  The valve and transistor types in the radiogram section are unknown and not listed.  The CRT type is not stated on the circuit diagram.  The audio power out of the radiogram section is 3.25 W/ch; that of the TV is 1.25W.  The speakers are twin cone types.  The record changer is a BSR type UA15.

• Mentioned in
• J. R. Publications "Television Service Handbook".

• Literature/Schematics (1)

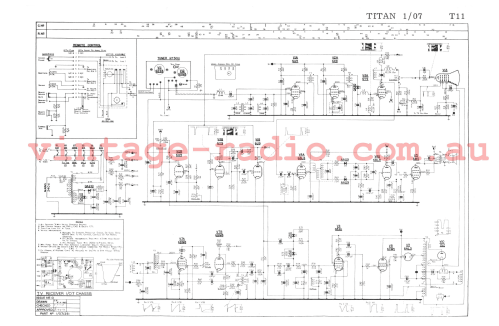

• J. R. Publications "Television Service Handbook" Page T11.
