Indicating Traceometer 155
Hickok Electrical Instrument Co.; Cleveland, OH
- Country
- United States of America (USA)
- Manufacturer / Brand
- Hickok Electrical Instrument Co.; Cleveland, OH
- Year
- 1940 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 334269
-
- alternative name: Hickock
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 110 & 4.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Metal case
- from Radiomuseum.org
- Model: Indicating Traceometer 155 - Hickok Electrical Instrument
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 16 x 13 x 10 inch / 406 x 330 x 254 mm
- Notes
-
Receiver tester with 5 meters, consists of RF-IF section, Osc section, AF section, DC section.
- Net weight (2.2 lb = 1 kg)
- 32 lb (32 lb 0 oz) / 14.528 kg
- Mentioned in

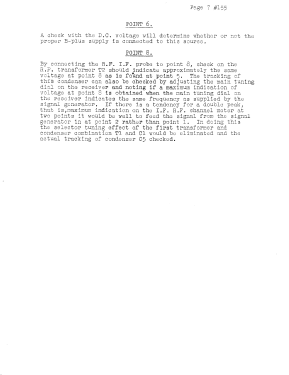

- -- Original-techn. papers.
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
