Multimeter 105-FET

Hioki E.E. Corporation; Ueda

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 130916

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 2
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 9 & 1,5 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Multimeter 105-FET - Hioki E.E. Corporation; Ueda
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 108 x 163 x 67 mm / 4.3 x 6.4 x 2.6 inch
  • Notes

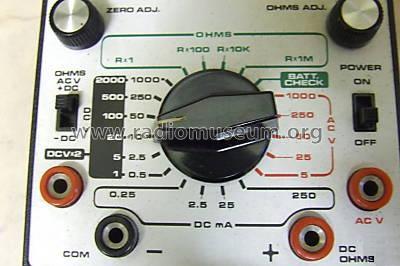

  • FET-Multimeter 105-FET.
    DC-V: 0,5, 2,5, 10, 50, 250, 1000 V @ 10 MΩ;
    DC-V: (x2 input) 1, 5, 20, 100, 500, 2000 V @ 20 MΩ;
    AC-V: 5, 25, 250, 1000 V @ 1 MΩ, 20 Hz-1 MHz (±1 dB @ 5 V);
    DC-A: 0,25, 2,5, 25, 250 mA;
    Res: 1 Ω, 100 Ω, 10 kΩ, 1 MΩ, Central scale (0.2 Ω-1000 MΩ range);
    Precision: 3 % (excepts AC-V 4 %).
  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Source of data
  • - - Manufacturers Literature
  • Mentioned in
  • - - Data from my own collection
  • Author
  • Model page created by Anders Sandgren. See "Data change" for further contributors.
