Multimeter 3020
Hioki E.E. Corporation; Ueda
- Country
- Japan
- Manufacturer / Brand
- Hioki E.E. Corporation; Ueda
- Year
- 1979 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 343782
Yahoo Auctions
Yahoo Auctions
Yahoo Auctions
- Wave bands
- - without
- Power type and voltage
- Dry Batteries
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Multimeter 3020 - Hioki E.E. Corporation; Ueda
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 130 x 52 mm / 3.5 x 5.1 x 2 inch
- Notes
-

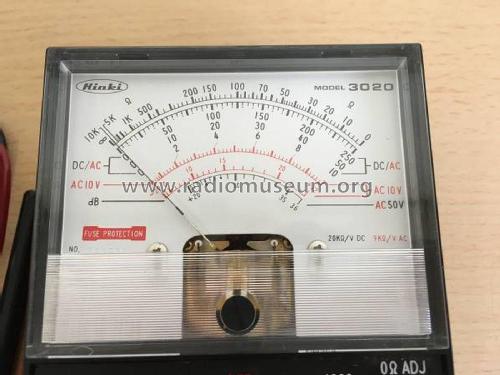

Hioki Model 3020 Multimeter
DC sensitivity: 20,000 Ω/V.
AC sensitivity: 9,000 Ω/V.
Ranges:- DC Voltage: 500 mv - 2.5 - 50 - 250 - 500 - 1,000 V
- AC Voltage: 1 - 50 - 250 - 500 - 1,000 V
- DC Current: 0.05 - 25 - 250 mA
- Resistance: 10 kΩ x1 - x10 - x100
- Decibel: from -20 to +22 dB
- Mentioned in
- -- Original prospect or advert (“Radio Rivista” official organ of "ARI Amat. Radio Assoc." of Italy, number 4, April 1979.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
