Empfängerweiche Ewe 30K
Hirschmann GmbH & Co., Richard; Esslingen
- Country
- Germany
- Manufacturer / Brand
- Hirschmann GmbH & Co., Richard; Esslingen
- Year
- 1960 ??
- Category
- Antenna (Aerial) or Coupler
- Radiomuseum.org ID
- 344012
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Empfängerweiche Ewe 30K - Hirschmann GmbH & Co., Richard
- Shape
- Miscellaneous shapes - described under notes.
- Dimensions (WHD)
- 64 x 94 x 30 mm / 2.5 x 3.7 x 1.2 inch
- Notes
-
Empfängerweiche Ewe 30K für Wandmontage.
Eingang 240 Ω sym: Kombiniertes Radio - TV - Signal.
Ausgang "Radio": 240 Ω sym: FS1 - LMKU
Ausgang "FS/TV": 240 Ω sym: FS III - IV

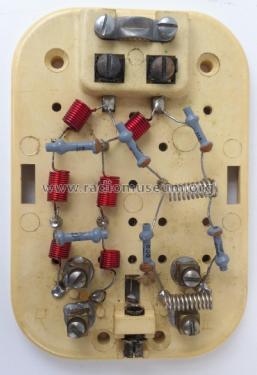

Bandtrennung über symmetrische LC - Hoch - Tiefpässe.
- Net weight (2.2 lb = 1 kg)
- 0.078 kg / 0 lb 2.7 oz (0.172 lb)
- Author
- Model page created by Harald Giese. See "Data change" for further contributors.
