Fernseh Pegelmeßgerät FPM 135

• Country
• Germany

• Manufacturer / Brand
• Hirschmann GmbH & Co., Richard; Esslingen

• Year
• 1977 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 257809

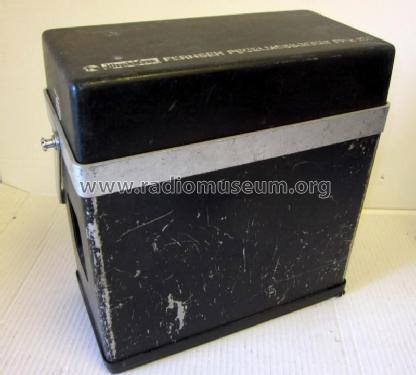

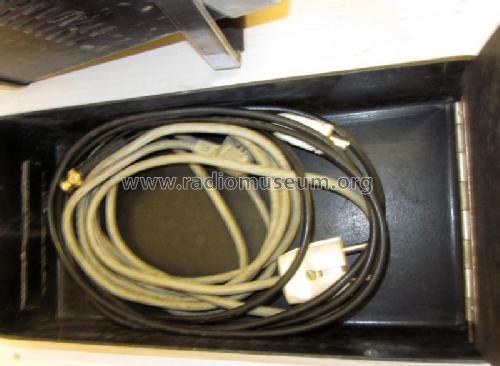

• Picture

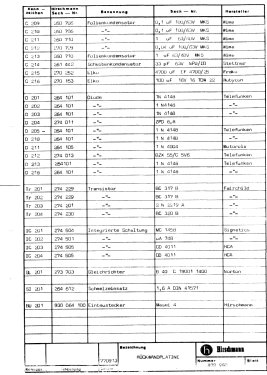

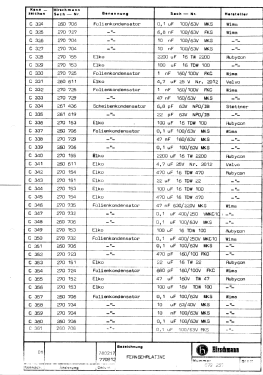

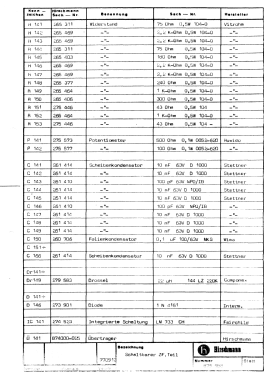

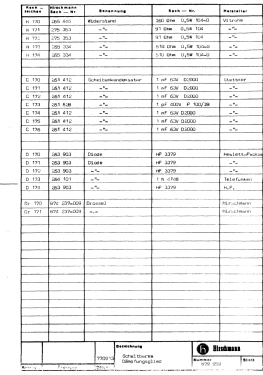

• Schematics

Previous Next

Previous Next

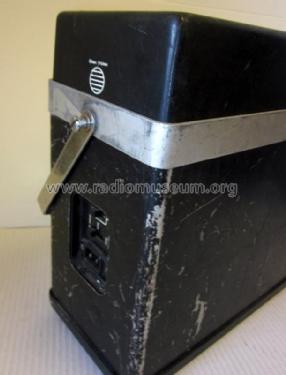

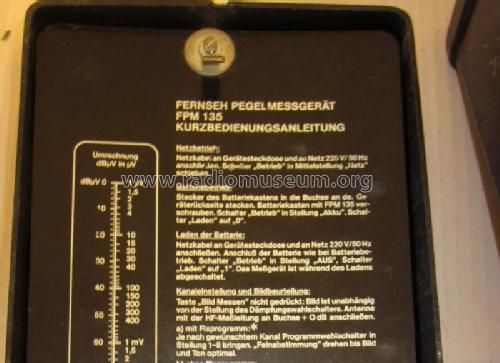

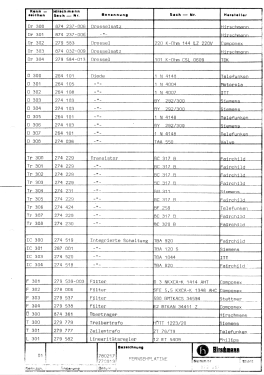

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• AW15-86

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 220 / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.1 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org
• Model: Fernseh Pegelmeßgerät FPM 135 - Hirschmann GmbH & Co., Richard

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 290 x 160 x 320 mm / 11.4 x 6.3 x 12.6 inch

• Notes

• s/w, nach CCIR B/G. 8 Programmspeicherplätze.

  Frequenzbereich: Bereich I        47...68 MHz,   Kanäle 2, 3, und 4

                            Bereich III     174...230 MHz, Kanäle 5...12

                            Bereich IV/V 470...854 MHz, Kanäle 21...68

  Pegelmeßbereich: 25...135 dBµV in 10 Meßbereichen

  Betrieb mit externer Gleichspannung (z.B. Fahrzeugbatterie, Trockenbatterien, externer optionaler Batteriekasten BK135) 11,3V bis 20V über vierpolige Buchse an der Rückseite.





• Net weight (2.2 lb = 1 kg)
• 6.9 kg / 15 lb 3.2 oz (15.198 lb)
