• Country
• Germany

• Manufacturer / Brand
• Hirschmann GmbH & Co., Richard; Esslingen

• Year
• 1985 ??

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 136668

• Number of Transistors
• 7

• Semiconductors

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 200-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

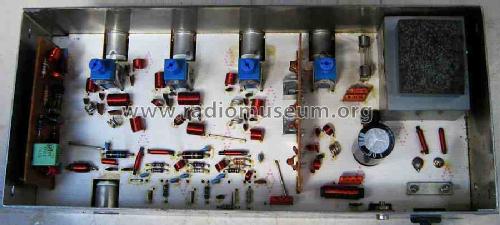

• Model: Mehrbereichsverstärker Sns4418 - Hirschmann GmbH & Co., Richard

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 260 x 95 x 70 mm / 10.2 x 3.7 x 2.8 inch

• Notes
• Mehrbereichsverstärker Sns 4418, vier regelbare Eingänge AM/FM, K 2-4, K 5-12, K 21-60, 26 bis 28 dB, max. Ausgangspegel 111 dBµV, Wandmontage.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
