• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337994

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes

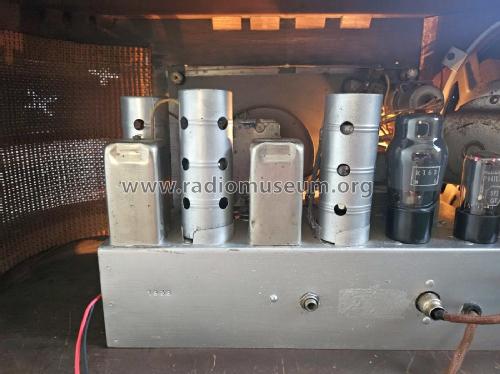

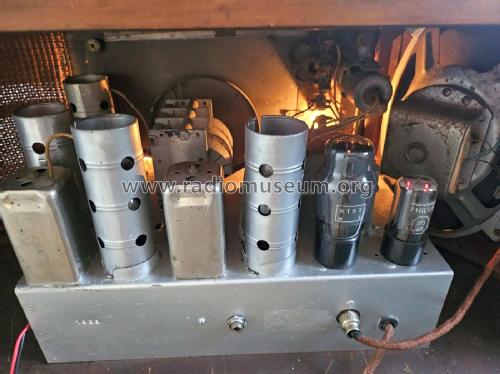

• 6U7G 6K8GT 6U7G DH63 6U5 KT63 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker

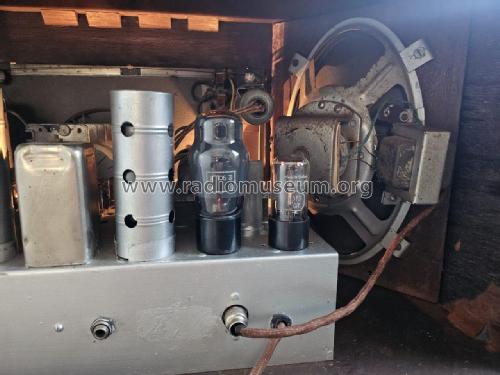

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

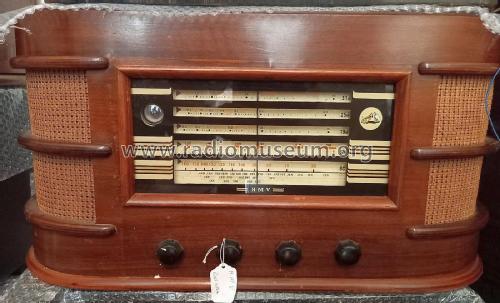

• Model: 467SB - His Master's Voice N.Z., Ltd.,

• Shape

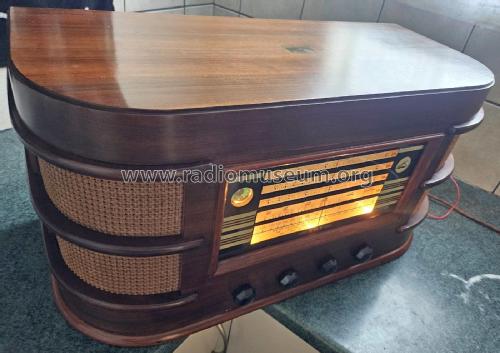

• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 25 x 12.75 x 11 inch / 635 x 324 x 279 mm

• Notes

• 7-valve (including magic eye) superhet with RF stage.

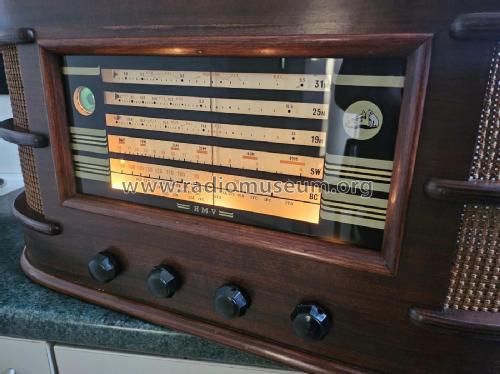

  5 band - 3 bandspread.

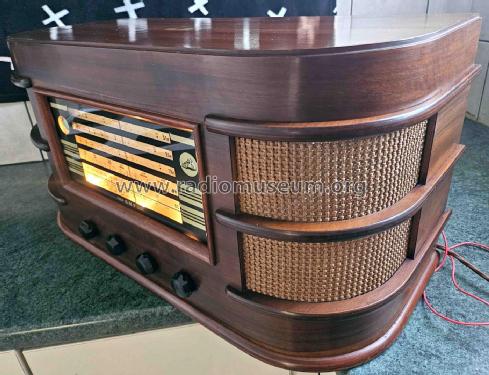

  "Exclusive golden toned elliptical speaker".

• Mentioned in
• The Golden Age of Radio in the Home 1986 (Page 144)

• Literature/Schematics (1)
• -- Original prospect or advert (Otago Daily Times 18 November 1946 Page 5)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
