• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345458

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 6U5 or 6G5 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Berkeley 5402 [Console Radiogram] - His Master's Voice N.Z., Ltd.,

• Shape
• Console with any shape - in general

• Notes

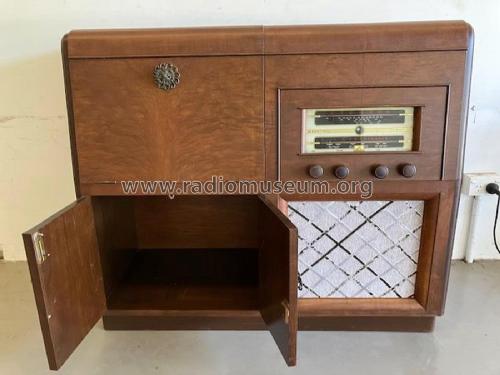

• 7-Valve (including magic eye) dual wave console radiogram and cocktail cabinet.

  Monarch 3 speed automatic changer and 12" Rola PM speaker.

  Cabinet finished in either Walnut veneer or Bird's Eye Maple.

• Price in first year of sale
• 139.00 NZ £

• Mentioned in

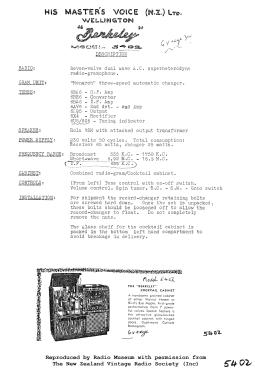

• -- Original prospect or advert (Press 29 June 1955 Page 14)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
