• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341077

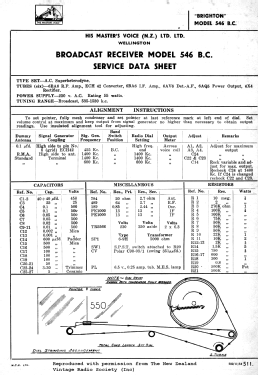

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6BA6 ECH42 6BA6 6AV6 6AQ5 6X4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Brighton 546 - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel, with any shape - general.

• Notes

• 6-Valve superhet with RF stage broadcast (MW) table model receiver.

  See also dual wave version 546D.
