• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356266

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8GT 6K7GT 6Q7GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: Cadet 465 [Mirror Cabinet] - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• His Master's Voice 465 Mirror

  See this bevelled glass all mirror H.M.V. radio -it's as modern as the minute-this original radio set enclosed in mirrors that will reflect the brightness of your home. Mirrored too, in this 5 valve broadcast model are the years of endeavour that have made HM.V. reception as clear as crystal.

  5 valve AC powered broadcast (MW) superhet mantel receiver.

  Tuning Frequency: MW 540-1750 kHz

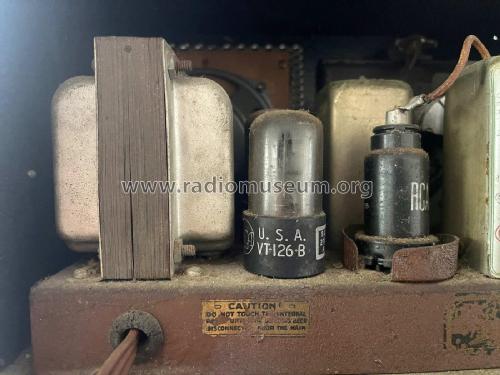

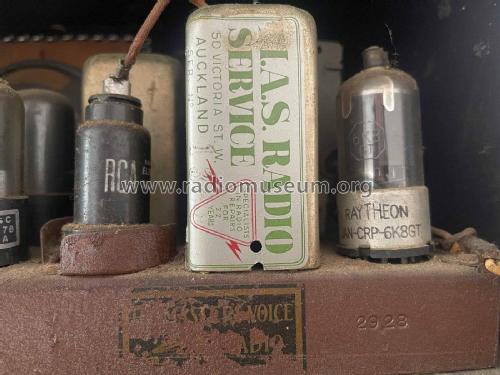

  Due to post wartime shortages some models may have substitute components including valves ECH35, EF39 or 6U7G, EBC33 or 6SQ7, EL33, 5Y3G.

  See also standard wooden cabinet model HMV Cadet 465.

• Mentioned in
• -- Original prospect or advert (Evening Star 22 March 1946 Page 7)

• Literature/Schematics (1)
• More Golden Age of Radio (Page 109)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
