Contemporary 5507
His Master's Voice (N.Z.), Ltd., HMV; Wellington
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- His Master's Voice (N.Z.), Ltd., HMV; Wellington
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 354240

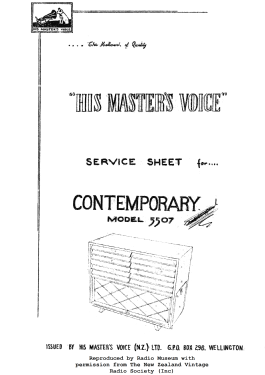

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 50Hz, 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Contemporary 5507 - His Master's Voice N.Z., Ltd.,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 36 x 31 x 18 inch / 914 x 787 x 457 mm
- Notes
-
HMV Contemporary 5507
6-Valve broadcast (MW) console radiogram with Rola 12 speaker and Monarch 3-speed automatic record changer with Ronette Type P head.
See also 5-valve version Contemporary 5506 and Australian Contemporary 32-4D.
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
