Daventry 200

His Master's Voice (N.Z.), Ltd., HMV; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 348232

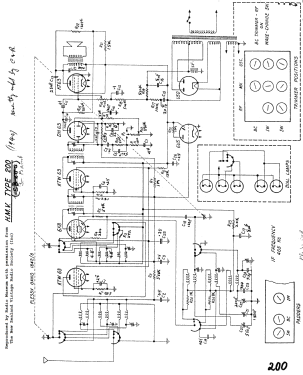

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Daventry 200 - His Master's Voice N.Z., Ltd.,
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

  • H.M.V. DAVENTRY

    Seven valve all wave model. A big, handsome all-waver that's both a champion of distance and a master of tone. Features include: big new speedband dial, 18in. long, marked with station names, coloured band indicator, angle vision pointer, spinner tuning and magic eye. New octal valves. Three bands: 550-1700 k.c. (broadcast), 16-49 metres, 49-80 metres (short wave), 10 inch wide H.M.V. High Fidelity English, Ellipticop Speaker, Radiacoustic Cabinet.

  • Price in first year of sale
  • 32.00 NZ Guineas
  • Mentioned in
  • -- Original prospect or advert (Waikato Times 25 September 1940 Page 5)
  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
