• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 336780

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6V6GT 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

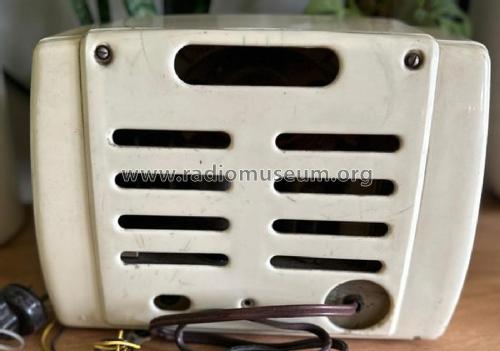

• Model: Little Nipper MKIII 5701 - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel, with any shape - general.

• Notes

• 5-Valve superhet broadcast (MW) mantel receiver.

  Four control knobs- tuning, volume, radiogram and exclusive tone control. Just a twist of the radiogram switch and your "Little Nipper" links up with your record player.

  Available in 3 attractive colours: Ivory, Dove-Grey or Maroon.

  Rola 4x6F PM elliptical speaker.

  See also HMV Luton 5701 - wooden cabinet with rounded top edge and HMV 5701 - wooden cabinet without rounded top edge.

• Price in first year of sale
• 19.95 NZ £

• Mentioned in
• -- Original prospect or advert (Press 19 October 1956 Page 18)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
