• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 344026

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6K8GT KTW63 6Q7GT 6V6GT 6X5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Material
• Wooden case

• from Radiomuseum.org
• Model: Minstrel 485 - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11 x 7.75 x 6.75 inch / 279 x 197 x 171 mm

• Notes

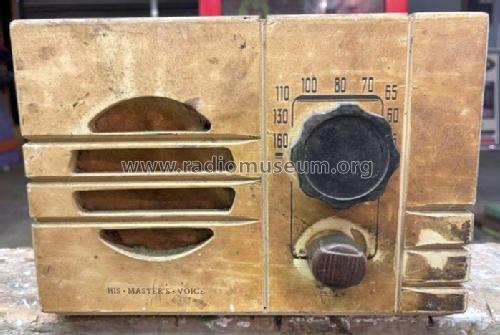

• 5-Valve superhet broadcast (MW) mantel receiver in mahogany or painted cream cabinet.

• Price in first year of sale
• 18.63 NZ £

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
