Radiomobile 203 XC

His Master's Voice (N.Z.), Ltd., HMV; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1958 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 335688

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superhet with RF-stage; ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 or 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 2 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Radiomobile 203 XC - His Master's Voice N.Z., Ltd.,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 7 x 2 x 7 inch / 178 x 51 x 178 mm
  • Notes

  • 7-valve superhet car radio.

    Comprised of two units, a 4-valve tuner, and Power Amplifier & vibrator power supply.

    The power amplifier & power supply is available in two versions.

     XC – single-ended audio output with 6X5 rectifier

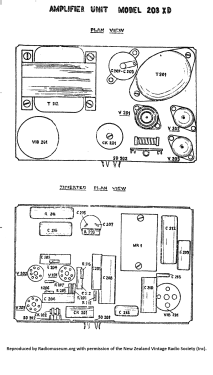

     XD – push-pull audio output. 3 valve with a selenium rectifier.

    The dimensions above are for the Control Unit.

    Both power amplifier units are 7" x  4½" x 4½", weighing 5lbs 6 oz.

    Radio can operate on 6 V or 12 v depending on the vibrator fitted.

    See also British Radiomobile  203X.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 lb (4 lb 8 oz) / 2.043 kg
  • Mentioned in
  • - - Manufacturers Literature (Service Sheet for Radiomobile 203XC & 203XD)
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
