Radiomobile 22X

His Master's Voice (N.Z.), Ltd., HMV; Wellington

Data
Forum
Pictures
Collections

  • Year
  • 1955 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 335518

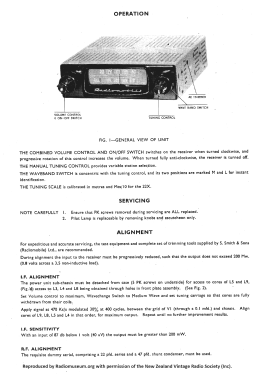

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 3
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Radiomobile 22X - His Master's Voice N.Z., Ltd.,
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 178 x 508 x 181 mm / 7 x 20 x 7.1 inch
  • Notes

  • 3-valve, manually tuned superhet car radio.

    HT from a non-synchronous vibrator and a metal rectifier.

    New Zealand version of the British Radiomobile 22X.

    Possibly assembled in New Zealand.

  • Net weight (2.2 lb = 1 kg)
  • 3.070 kg / 6 lb 12.2 oz (6.762 lb)
  • Mentioned in
  • - - Manufacturers Literature (Smiths Radiomobile, service Manual, Model 22X)
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
