• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• His Master's Voice (N.Z.), Ltd., HMV; Wellington

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356289

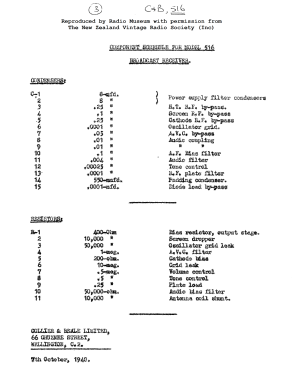

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 6K7G 6Q7G 6F6G 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: World Tourer 526 - His Master's Voice N.Z., Ltd.,

• Shape
• Tablemodel, with any shape - general.

• Notes

• His Master's Voice World Tourer 526

  5-valve dual wave superhet mantel receiver manufactured by Collier & Beale Ltd for His Master's Voice (N.Z.), Ltd.

• Mentioned in
• More Golden Age of Radio (Page 109)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
