- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- His Master's Voice (N.Z.), Ltd., HMV; Wellington
- Year
- 1947 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338041

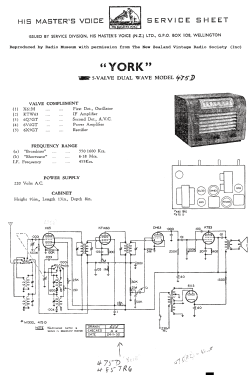

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: York 475D - His Master's Voice N.Z., Ltd.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 9.5 x 8 inch / 330 x 241 x 203 mm
- Notes
-
5-valve superhet dual wave receiver.
See also Model 475BC Kent broadcast only version.
- Price in first year of sale
- 26.60 £
- Mentioned in
- -- Original prospect or advert (Northern Advocate 5 September 1949 Page 3)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
