• Year
  • 1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 180895

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 195-255 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

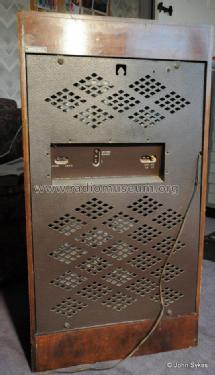

  • Model: 1301 - HMV Brand, His Masters Voice,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 470 x 880 x 292 mm / 18.5 x 34.6 x 11.5 inch
  • Notes
  • Similar to the Marconiphone 884 console radio.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by John Sykes. See "Data change" for further contributors.
