• Country
• Great Britain (UK)

• Manufacturer / Brand
• HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 85977

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH81 UBF89 UCL83 UY85

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

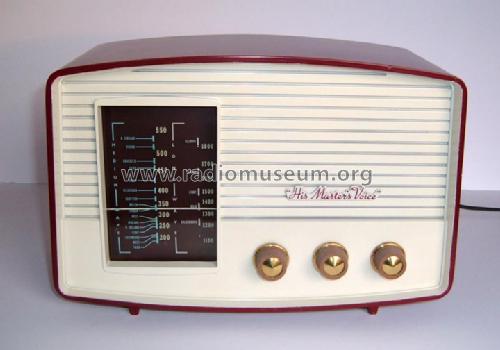

• Model: 1373 - HMV Brand, His Masters Voice,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 345 x 210 x 160 mm / 13.6 x 8.3 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Literature/Schematics (1)
• - - Data from my own collection
