- Country
- Great Britain (UK)
- Manufacturer / Brand
- HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105041
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 2 × 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.4 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org

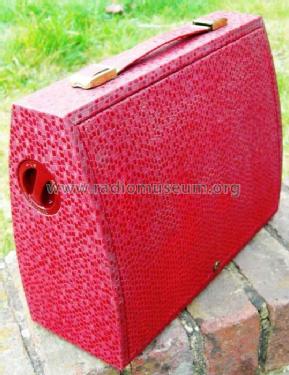

- Model: 1420 - HMV Brand, His Masters Voice,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.8 x 9.5 x 4.5 inch / 300 x 241 x 114 mm
- Notes
- .
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
