1507

HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

Data
Forum
Pictures
Collections

  • Year
  • 1953
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 123362

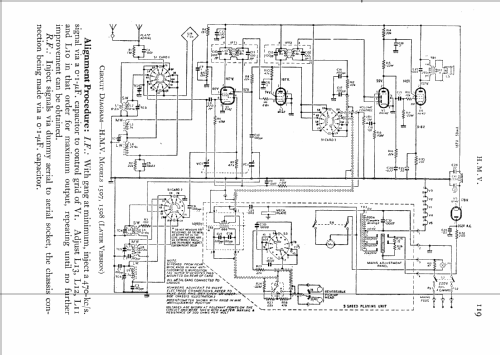

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz

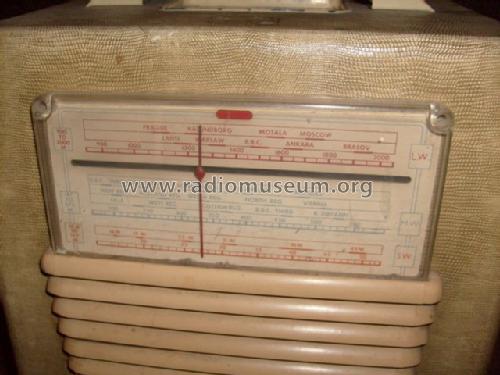

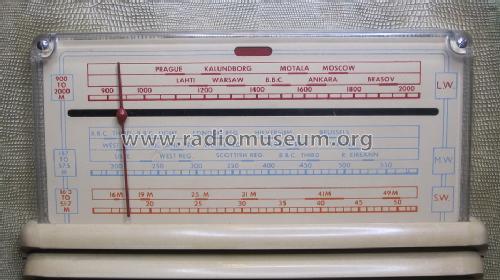

  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

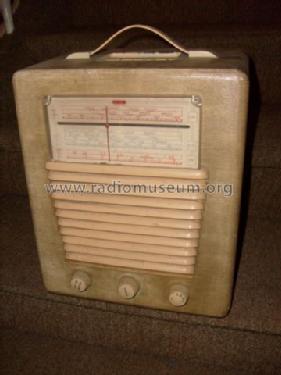

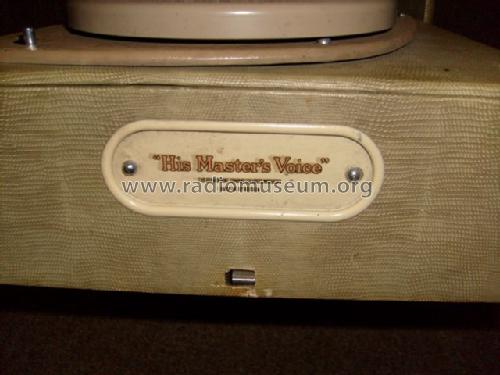

  • Model: 1507 - HMV Brand, His Masters Voice,

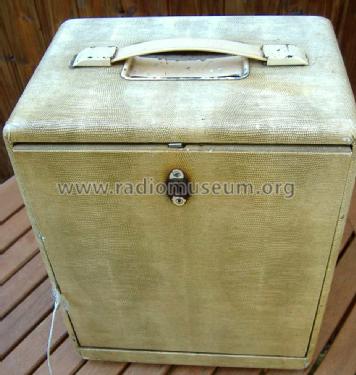

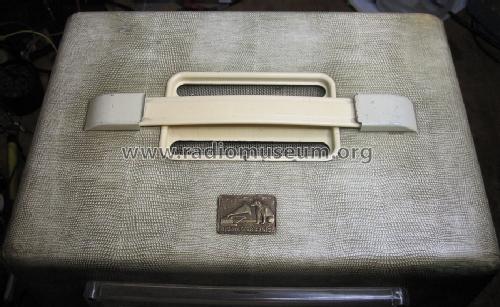

  • Shape

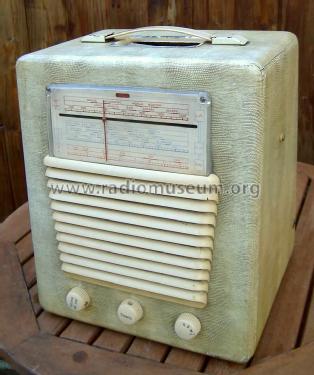

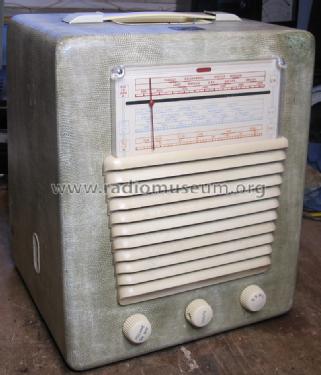

  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 270 x 325 x 220 mm / 10.6 x 12.8 x 8.7 inch
  • Notes

  • Mit original HMV-Plattenspieler zum Ausklappen, Geschwindigkeiten: 33, 45, 78 rpm.

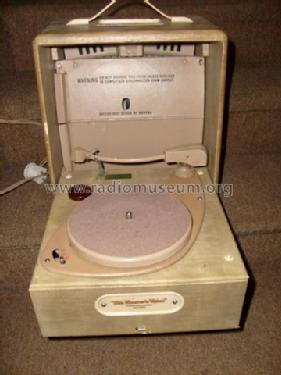

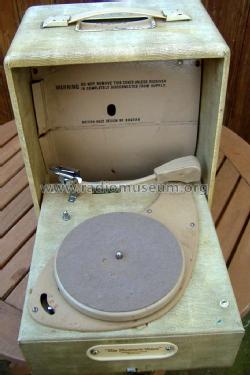

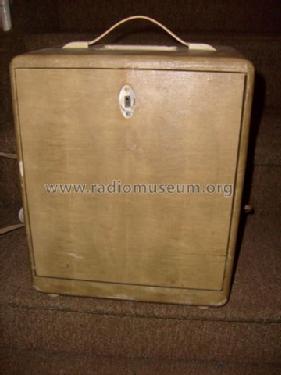

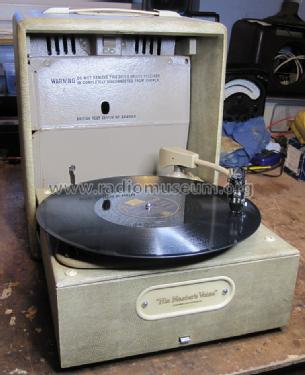

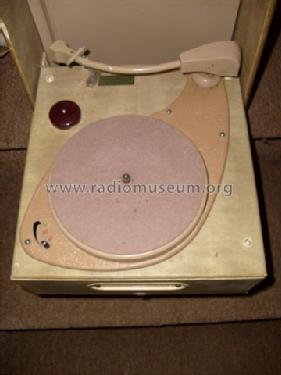

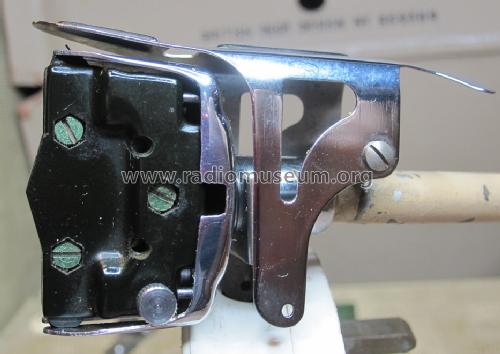

    The HMV record player unfolds from the rear. Speeds 33.3, 45 & 78 rpm.

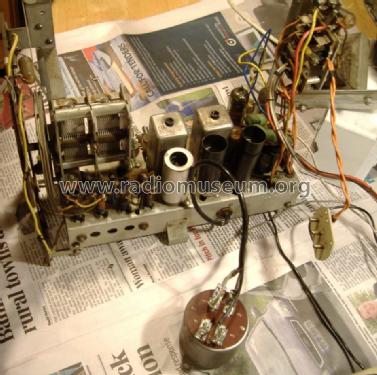

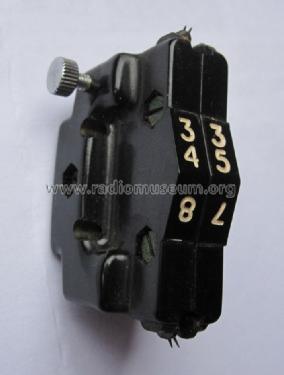

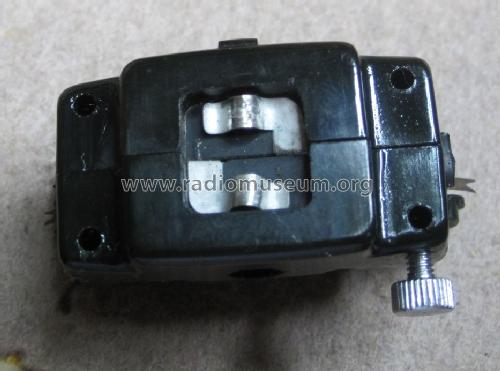

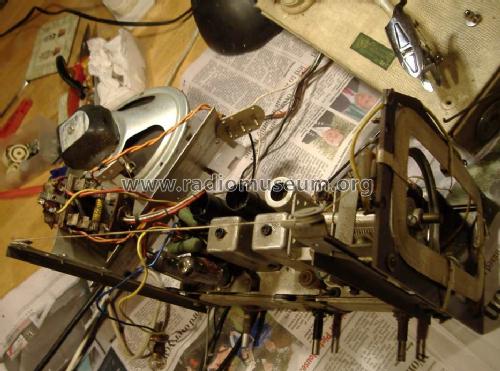

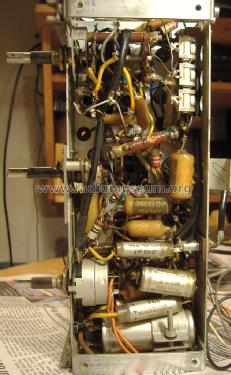

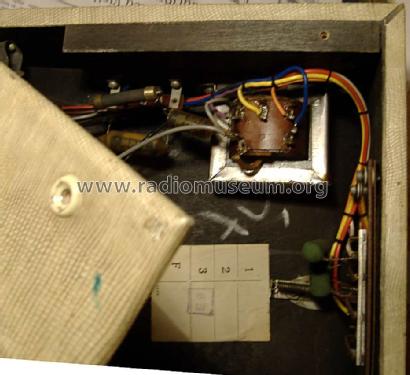

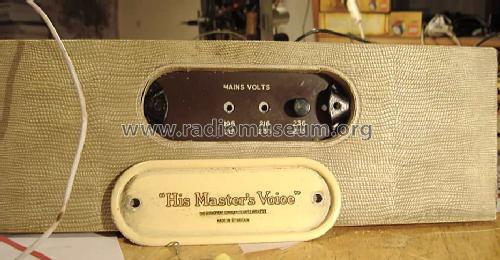

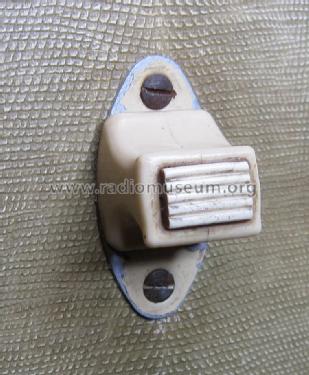

    Mains supply via a side mounted 3 pin connector (Earth is centre pin and required). While there is a transformer and player chassis is earthed, the radio chassis connects to one mains wire and the transformer provides no isolation as it's just an auto-transformer for filament series chain. The HT uses "dropper" resistors to U142/U107 direct from mains "live".

    Early production used valve/tube types X109, W107, DH107, N108, U107. (all B7G 100 mA except X109, rather than listed Rimlock B8A  100mA types)

    The Export version 5323 replaces LW with a 2nd SW band

  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Author
  • Model page created by Michael John. See "Data change" for further contributors.
