• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 105033

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 195-255 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

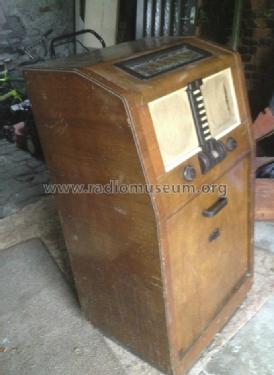

  • Model: 1608 - HMV Brand, His Masters Voice,
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • This model was exported to Australia.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. VIII
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
