- Country
- Great Britain (UK)
- Manufacturer / Brand
- HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 236627

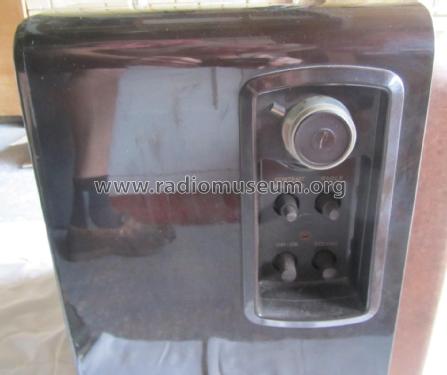

Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
Ebay auction by user mgu49 151488100774
- Number of Tubes
- 17
- Valves / Tubes
- PCC89 PCF80 EF85 EF80 PCL84 EB91 EF80 EF80 EB91 PCL82 ECC82 PCL82 PL81 EY86 PY81 PY32 AW43-88
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1890 - HMV Brand, His Masters Voice,
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Mono 17" 110 degree CRT 405 line (system A) TV (VHF Band I & Band III). Similar to 1892 (17" with radio) and 1893. The 1894 is the 21" version
Warning: Live chassis. Aerial isolation capacitors should be safety types.
OA79 AM sound detector diode, OA70 Vision Detector.
Uses PCB construction with two main panels. During production the design was changed, R&TVS refers to these as Schedule A and Schedule B.
- Literature/Schematics (1)
- Radio And Television Servicing books (R&TVS) (1960-1961 Edition. Page 407 etc)
- Author
- Model page created by Michael Watterson. See "Data change" for further contributors.
- Other Models
-
Here you find 425 models, 335 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex
