- Country
- Great Britain (UK)
- Manufacturer / Brand
- HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 215181
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 13
- Main principle
- Superheterodyne (common); ZF/IF 475/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

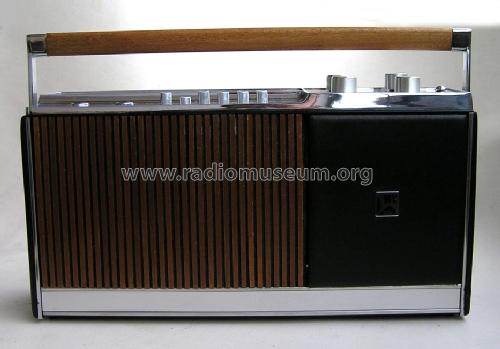

- Model: 2170 - HMV Brand, His Masters Voice,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 14.25 x 7.25 x 3.75 inch / 362 x 184 x 95 mm
- Notes
-
The Marconiphone 4170 is the same radio but in a slightly different case. Sockets for tape recorder or earphone, optional mains PSU and car aerial. Elliptical loudspeaker 6 x 4 inch.
- Price in first year of sale
- 32.80 GBP
- Literature/Schematics (1)
- - - Manufacturers Literature (BRC Service Manual for the HMV 2170 and Marconiphone 4170)
- Literature/Schematics (2)
- ERT Service Chart 1807 dated September 2 1971
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
