- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 187899

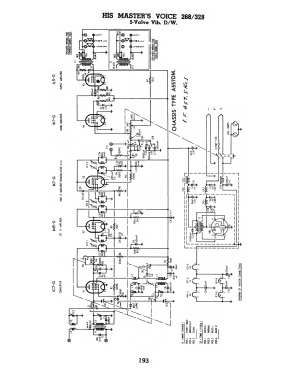

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz; 2 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 328 Ch= A557DM - His Master's Voice HMV, H.M.V.
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 32 x 29.5 x 12 inch / 813 x 749 x 305 mm
- Notes
- This model has a 10 inch woofer and a 6 inch tweeter, both permanent magnet. It uses a synchronous vibrator power unit.
- Net weight (2.2 lb = 1 kg)
- 61 lb (61 lb 0 oz) / 27.694 kg
- Price in first year of sale
- 59.85 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VII
- Literature/Schematics (1)
- - - Manufacturers Literature (HMV Service Manual, Table Model 268 & Console Model 328.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 193.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
