- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164083

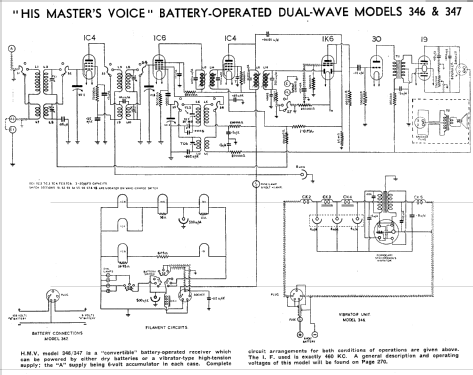

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 135 & 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 347 Ch= 657D/1 - His Master's Voice HMV, H.M.V.
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Same chassis used in Models 346, 348 & 349.
- Price in first year of sale
- 40.00 Aus£
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. I
- Literature/Schematics (1)
- Radio Trade Annual of Australia (1938, Page 265)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
