• Country
• Great Britain (UK)

• Manufacturer / Brand
• HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

• Year
• 1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94949

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• MX40 VMS4 MHD4 MPT4 MU12

• Main principle
• Superheterodyne (common); ZF/IF 125 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

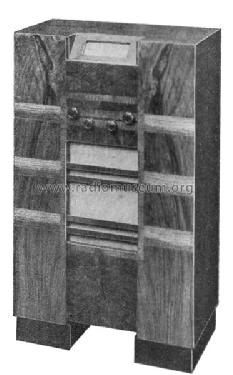

• Model: 444 - HMV Brand, His Masters Voice,

• Shape
• Console, Lowboy (legs < 50 %).

• Notes
• Similar to the Marconiphone 291 console radio.

• Literature/Schematics (1)
• His Master's Voice, Original Sheet

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
