• Country
• Great Britain (UK)

• Manufacturer / Brand
• HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 165828

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• X41 VMP4G MH4 D41 MPT4 U12

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org

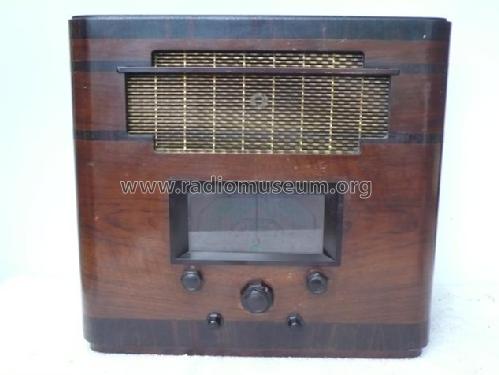

• Model: 491 - HMV Brand, His Masters Voice,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 430 x 270 mm / 18.1 x 16.9 x 10.6 inch

• Literature/Schematics (1)
• Trader' Service Sheet 188

• Author
• Model page created by Manfred Seidel. See "Data change" for further contributors.
