• Country
• Great Britain (UK)

• Manufacturer / Brand
• HMV (Brand), His Masters Voice, The Gramophone Company Ltd.; Middlesex

• Year
• 1952 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155992

• Number of Tubes
• 5

• Valves / Tubes
• X142 W142 DH142 N142 U142

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 108-160 185-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org

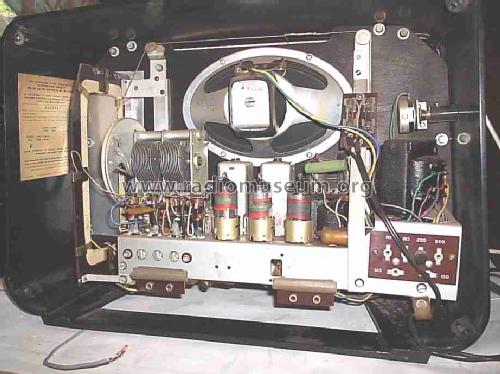

• Model: 5126 - HMV Brand, His Masters Voice,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 285 x 180 mm / 16.5 x 11.2 x 7.1 inch

• Notes
• There is an output for an external loudspeaker

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Author
• Model page created by Nigel Hulse. See "Data change" for further contributors.
