- Country
- Belgium
- Manufacturer / Brand
- His Master's Voice (HMV, EMI); Bruxelles
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 338201

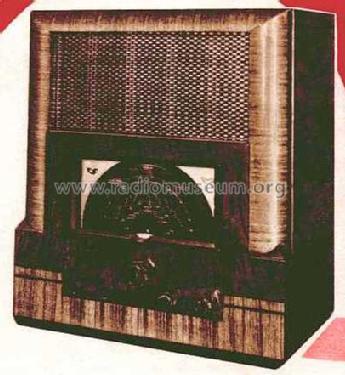

HMV model 862
Prospectus 1938
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 12 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 862 - His Master's Voice HMV, EMI;
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 500 x 570 x 300 mm / 19.7 x 22.4 x 11.8 inch
- Notes
-
KT63 push-pull output stage.
- Price in first year of sale
- 6,900.00 Bfr
- Mentioned in
- -- Original prospect or advert (Suprematie HMV 1938 - Radio Pons, Charleroi)
- Author
- Model page created by Dirk Bladt. See "Data change" for further contributors.
- Other Models
-
Here you find 76 models, 66 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from His Master's Voice (HMV, EMI); Bruxelles
