Hampton PU5-BM Ch= PU5

His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

Data
Forum
Pictures
Collections

  • Year
  • 1970
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 291949

 Technical Specifications

  • Number of Tubes
  • 7
  • Number of Transistors
  • 18
  • Main principle
  • Superhet with RF-stage; ZF/IF 36875 & 5500 kHz; 2 AF stage(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 230-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Hampton PU5-BM Ch= PU5 - His Master's Voice HMV, H.M.V.
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 39.5 x 28.5 x 17.25 inch / 1003 x 724 x 438 mm
  • Notes

  • His Master's Voice Model PU5-BM "Hampton"

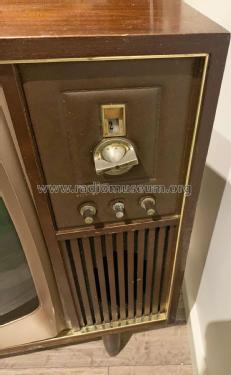

    A 25" lowboy TV receiver with two 7" x 5" speakers. Features a 19 transistor, 6 valve, 14 diode circuit. Cabinet available in low gloss walnut, high gloss maple (top only) and teak veneer. Front mounted controls for channel selection, picture sound and on/off, other controls at top rear of cabinet with easy access. (MINGAY'S PRICE SERVICE)

    The two unknown diode types are AB2031 and AB2040, signal diodes, but no information is available on them.

    The height includes 9 inch legs.

  • Net weight (2.2 lb = 1 kg)
  • 104 lb (104 lb 0 oz) / 47.216 kg
  • Price in first year of sale
  • 330.00 AUS $
  • Literature/Schematics (1)
  • -- Original-techn. papers. (HMV Service Manual, PU5 Models, August 1970.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
