- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1958/1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290356
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: K1-4T Ch= K1 - His Master's Voice HMV, H.M.V.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 36 x 29.5 x 15 inch / 914 x 749 x 381 mm
- Notes
-
HMV Model K1-4T

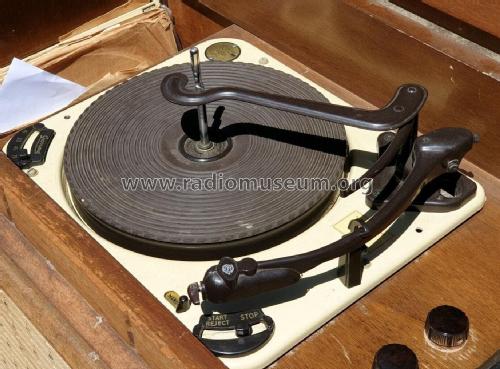

A six-valve broadcast radiogram equipped with 4-speed changer (Garrard RC120/4H or RC121/H4 Mk. II) which automatically plays up to 10 selected records of same diameter and playing speed. Mixed diameter records may also be played automatically if the large records are placed at the bottom of the stack. Individual tone controls for bass and treble response. Two speakers are employed - a 6" x 9" elliptical high flux (MSP 9-6PT) and a 6" round treble reproducer (MSP 6-PU). Generous record storage. All controls concealed under lift-up lid. Indicator lamp shows when set is switched on. Available in walnut or rosewood with chessman sand-black-white grille fabric. (FROM MINGAY'S PRICE SERVICE)
See also Kelvinator Model K1-K4T.
- Net weight (2.2 lb = 1 kg)
- 73 lb 0 oz (73 lb) / 33.142 kg
- Price in first year of sale
- 103.45 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1959.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Model Data Sheet)
- Literature/Schematics (2)
- -- Original-techn. papers. (HMV Service Manual for Chassis Type K1)
- Literature/Schematics (3)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H59.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
