Miami 33-K61 Ch= 33-K
Kelvinator; Keswick, South Australia
- Country
- Australia
- Manufacturer / Brand
- Kelvinator; Keswick, South Australia
- Year
- 1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 195888
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 220-225; 226-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Miami 33-K61 Ch= 33-K - Kelvinator; Keswick, South
- Dimensions (WHD)
- 14.5 x 9.5 x 18 inch / 368 x 241 x 457 mm
- Notes
-
Rebadged HMV 33-61. Apart from some minor cosmetic differences, is otherwise identical.
Available in Red, Blue, Burgundy & Green.
Also availiable in single play version. Price £58/5/6.
- Net weight (2.2 lb = 1 kg)
- 25 lb 8 oz (25.5 lb) / 11.577 kg
- Price in first year of sale
- 64.05 AUS £

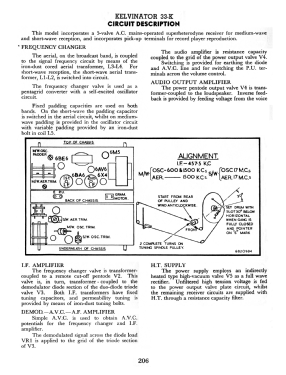

- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XIV
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
