- Country
- Australia
- Manufacturer / Brand
- His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 290390
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 457.5 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: L1-4U Ch= L1 - His Master's Voice HMV, H.M.V.
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 36 x 29.5 x 12 inch / 914 x 749 x 305 mm
- Notes
-
Radiogram with 4-speed auto changer. Can be adapted for stereophonic reproduction with extension speaker type ES2, £27/6/- & Stereo pick-up type PH1, £9/9/-.
Cabinet finishes available in Maple, Walnut & Rosewood.
- Price in first year of sale
- 124.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (HMV Service Manual for Chassis Type L1.)
- Literature/Schematics (2)

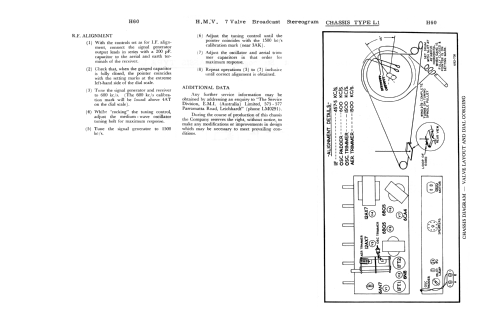

- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page H60.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
