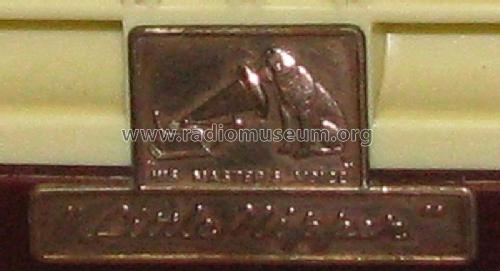

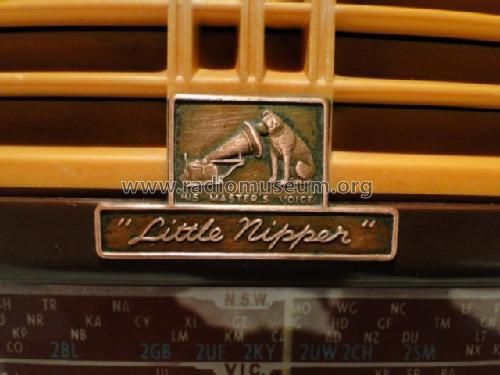

Little Nipper 61-51 Ch= 61

• Country
• Australia

• Manufacturer / Brand
• His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 160148

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 6M5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 457,5 kHz; 2 AF stage(s); none

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 40-50Hz, 200-225; 226-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 12.5 cm = 4.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Little Nipper 61-51 Ch= 61 - His Master's Voice HMV, H.M.V.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 9 x 6.5 inch / 305 x 229 x 165 mm

• Notes

• Colours available: Burgundy, Ivory, Green & Grey.

  See also earlier Model B13C

• Net weight (2.2 lb = 1 kg)
• 4.1 kg / 9 lb 0.5 oz (9.031 lb)

• Price in first year of sale
• 22.05 AUS £

• Mentioned in
• Mingay's Price Service (May 1954 to May 1955.)

• Literature/Schematics (1)
• -- Original-techn. papers. (Model Data Sheet, 61-51.)

• Literature/Schematics (2)
• -- Original-techn. papers. (Service Data, Type 61.)

• Literature/Schematics (3)
• Australian Official Radio Service Manual AORSM (Volume 13, 1955 (for 1954 models), Page 154.)

• Author
• Model page created by Wolfgang Lohrie. See "Data change" for further contributors.
