• Country
• Australia

• Manufacturer / Brand
• His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW

• Year
• 1972–1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 220559

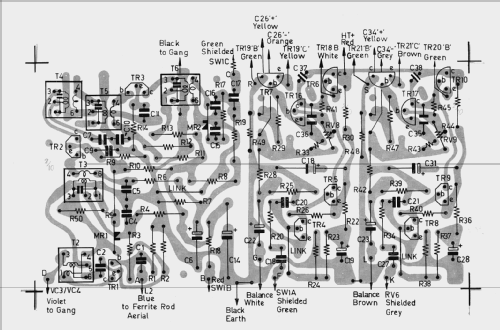

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors
• BF195 or. BF127 BF194 or. BF127 BC149 or. BC109 BC147 or. BC107 BC157 or. TT177 BC148 or. BC108 TT804 or. OC946 TT803 or. OC926 BDY20 or. 2N3055 OA6 or. TD1101 OA90 EM404 or. BY126

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 6 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 240-250 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 24 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sceptre 80 TJ-4X Ch= TJ - His Master's Voice HMV, H.M.V.

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 734 x 522 x 444 mm / 28.9 x 20.6 x 17.5 inch

• Notes

• Stereo-radiogram. Most of the devices listed above occur more than once. The weight below includes the speaker boxes.

  Stereo-radiogram. Most of the devices listed above occur more than once. The weight below includes the speaker boxes.

  Cabinet finishes in Walnut & Teak.

• Net weight (2.2 lb = 1 kg)
• 54.5 kg / 120 lb 0.7 oz (120.044 lb)

• Price in first year of sale
• 359.00 AUS $

• Literature/Schematics (1)
• - - Manufacturers Literature (HMV Service Manual TJ-4X, March 1972.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.

• Other Models

• Here you find 586 models, 406 with images and 283 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from His Master's Voice (HMV, H.M.V.), EMI (Australia) Ltd.; Sydney, NSW
