10 Transistor KH-1021M
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1983 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 238332
-
- alternative name: Hitachi Sales Corp. of America
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: 10 Transistor KH-1021M - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 11.5 x 7.5 x 3.25 inch / 292 x 191 x 83 mm
- Notes
-

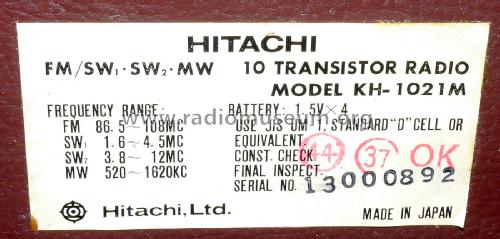

Hitachi Multiband Portable Radio Model KH-1021M.
Tuning Range:
FM 86,5 - 108 MHz, AM 520 - 1620 kHz
SW1 1,6 - 4,5 MHz, SW2 3,8 - 12 MHz.
Carrying Handle, Pull Up antenna, AFC.Eliptical speaker is 3 x 5 inches.
Made in Japan.
- Net weight (2.2 lb = 1 kg)
- 4 lb 8 oz (4.5 lb) / 2.043 kg
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
- Other Models
-
Here you find 1057 models, 947 with images and 242 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hitachi Ltd.; Tokyo
Collections
The model 10 Transistor is part of the collections of the following members.
