Cassette Tape Recorder TRQ-249

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1975 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 236891
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • 5
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 240 / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 0.5 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder TRQ-249 - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 142 x 61 x 277 mm / 5.6 x 2.4 x 10.9 inch
  • Notes

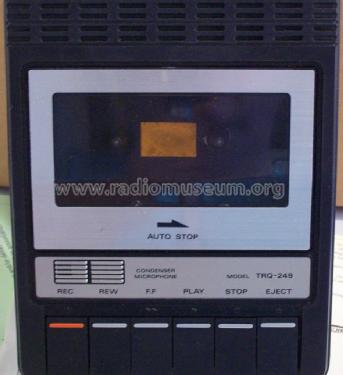

  • Hitachi Toploading Cassette Tape Recorder Model TRQ-249.
    Built in Condenser Mic, Auto Stop Function.
    Carrying Handle
    Power Consumption 6 Watts.
    Made in Taiwan - Republic of China.

  • Net weight (2.2 lb = 1 kg)
  • 1.8 kg / 3 lb 15.4 oz (3.965 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
