Cassette Tape Recorder TRQ 280 W
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1970 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 349879
-
- alternative name: Hitachi Sales Corp. of America

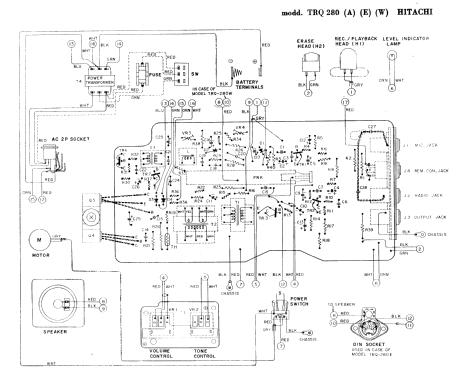

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 50-60Hz: 117; 230 / UM-2: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Cassette Tape Recorder TRQ 280 W - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
Mono cassette tape recorder/player with input for Radio and Microphone.
Output jack for external amplifier. Tone and remote controls.
This appliance differs from the 280 A and E models due to the different power supply voltage: 117 and 230 V AC.
- Mentioned in
- -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
