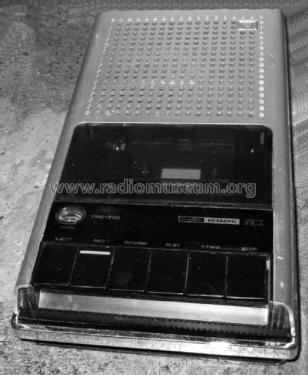

Cassette Tape Recorder TRQ-290 (Japan 303) 117 V

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 211178
    • alternative name: Hitachi Sales Corp. of America

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 117; 6; 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Cassette Tape Recorder TRQ-290 [117 V] - Hitachi Ltd.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 150 x 62 x 270 mm / 5.9 x 2.4 x 10.6 inch
  • Notes

  • Portable Toploadig Cassette Tape Recorder with Leather case.
    Mic Input (3,5 mm), Remote Radio output, Tone- and Volume-Controls.
    Power Consumption: DC 6 V 2 W; AC 117 V 60 Hz 5 W.

    See also Hitachi TRQ-290 for 50 Hz, 230 VAC

    Made in Japan 303

  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
