• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 2012 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 354934

• • alternative name: Hitachi Sales Corp. of America

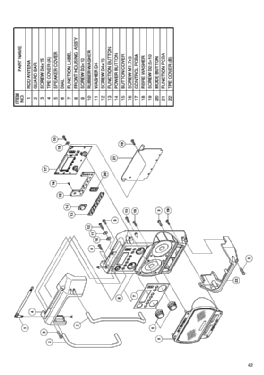

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage

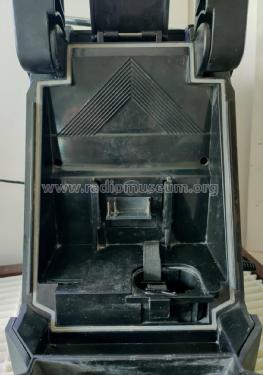

• Line plus power jack, mostly with battery or storage battery / 230 / 9.6; 12; 14.4; 18 & AA: 3 × 1.5 backup Volt

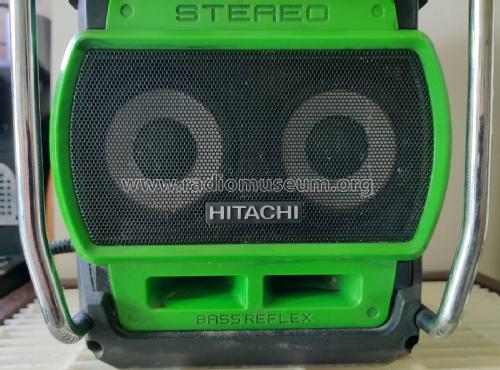

• Loudspeaker
• 2 Loudspeakers / Ø 7.6 cm = 3 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Cordless Radio UR 18DSL - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 184 x 281 x 231 mm / 7.2 x 11.1 x 9.1 inch

• Notes

• 5 AM+5 FM preselect. Phone charging jack 5 V / 0.5 A  (USB).

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
