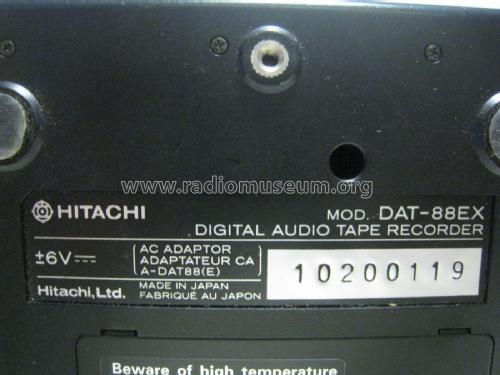

Digital Audio Tape DAT-88EX
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1990 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 292237
-
- alternative name: Hitachi Sales Corp. of America
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification; Hi-Fi-High End products
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player; Hi-Fi equipment
- Power type and voltage
- Line / Batteries (any type) / 220 AC / 6 DC Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Digital Audio Tape DAT-88EX - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 120 x 187 x 40 mm / 4.7 x 7.4 x 1.6 inch
- Notes
-
HITACHI Digital Audio Tape mod. DAT-88EX: 8 - Stage error correction, 30 tape loading system, digital in/out interface, lcd graphic display, reset/program up-down-memory-repeat - sub/code id mode-write-erase keys, volume control, digital/analog switch, after rec on/off, operate on/off, remote sensor, rec level separate regulation of channels L/R, headphone output, att. 0/-20 dB, external microphone output L/R, line in/line out, digital in/digital out, frequency response: 10 - 22.000 Hz, remote controller supplied mod.RB-88, 6 V battery 1500 mAh Ni-Cd mod. BP-DAT88, battery charger/power supply mod. A-DAT88(E) 17 VA, handbag with handle.
- Net weight (2.2 lb = 1 kg)
- 0.980 kg / 2 lb 2.5 oz (2.159 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
