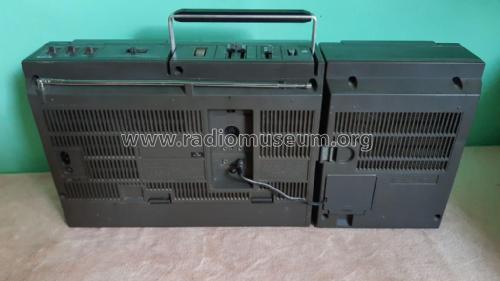

FM/SW/MW/LW Stereo Cassette Recorder TRK-2200E
Hitachi Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Hitachi Ltd.; Tokyo
- Year
- 1982 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 323404
-
- alternative name: Hitachi Sales Corp. of America
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 50Hz, 220 / D: 8 x 1.5 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: FM/SW/MW/LW Stereo Cassette Recorder TRK-2200E - Hitachi Ltd.; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 537 x 247 x 123 mm / 21.1 x 9.7 x 4.8 inch
- Notes
-
Built-in condenser mics. LED level indicator. 3-digit tape counter.
Power consumption max. 18W (mains)FTZ-Nr. 11/646
Made in Singapore
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Author
- Model page created by Milosav Zivojinovic. See "Data change" for further contributors.
