• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1987/1988

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149578

• • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM Stereo Tuner FT-5500MKIIR - Hitachi Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 435 x 60 x 300 mm / 17.1 x 2.4 x 11.8 inch

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data

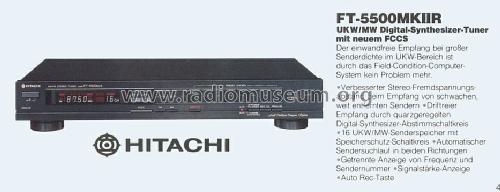

• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
