• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1975 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324039

• • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC535 2SC535 2SC460 2SC460 2SC460 2SB77 2SC458 2SB77 2SB156 2SB156 1N60 1S85 1N60 1N60 1N60 1N60 1N34

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.6 W (0.8 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

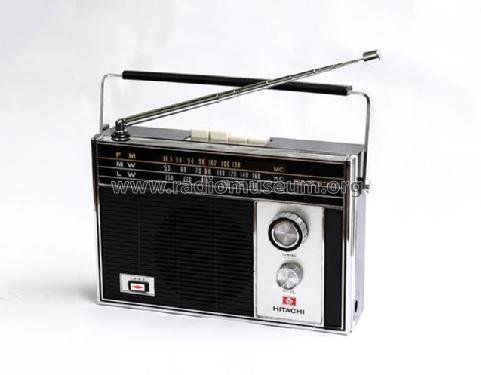

• Model: KH-1006L - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 242 x 16 x 66 mm / 9.5 x 0.6 x 2.6 inch

• Notes

• AM Ferrite antenna, FM telescopic antenna.

  Earphone jack.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)
