• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 183085

• • alternative name: Hitachi Sales Corp. of America

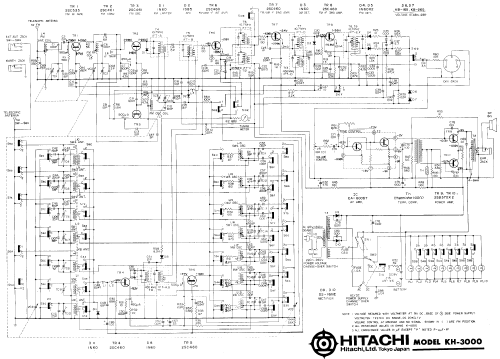

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• 2SC535 2SC535 2SC461 2SC460 2SC460 2SC460 2SC460 2SC460 2SB370 2SB370 FA6008T 1N60 1S85 KB165 KB265

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-120; 220-240/ 6 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (undistorted)

• Material
• Various materials

• from Radiomuseum.org

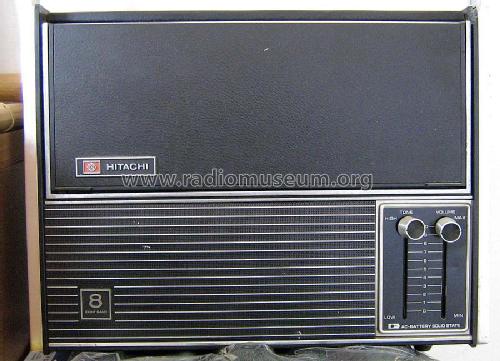

• Model: KH-3000 - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 345 x 260 x 145 mm / 13.6 x 10.2 x 5.7 inch

• Notes
• 8 bands:
  FM 88 - 108 MHz
  MW 520 - 1620 kHz
  LW 150 - 350 kHz
  MB 1.6 - 4.5 MHz
  SW1 4.5 - 8 MHz
  SW2 8 - 14 MHz
  SW3 14 - 20 MHz
  SW4 20 - 28 MHz

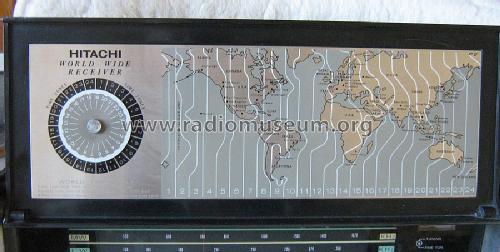

  2 ferrite antennas, both cm 18; 2 telescopic antennas, for SW 155 cm, for FM 91 cm. Loudspeaker cm 15 x 11, 2 Watt. World time table.
  Sockets for external antenna, for earphone, for record player/tape recorder. Switch AC/battery. Dial light, power on/off, AFC on/off, tuning meter/battery level indicator, fine tuning.

• Net weight (2.2 lb = 1 kg)
• 5.2 kg / 11 lb 7.3 oz (11.454 lb)

• Source of data
• - - Data from my own collection
