• Country
• Japan

• Manufacturer / Brand
• Hitachi Ltd.; Tokyo

• Year
• 1974

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182713

• • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 54

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 117 / 12 / 8 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

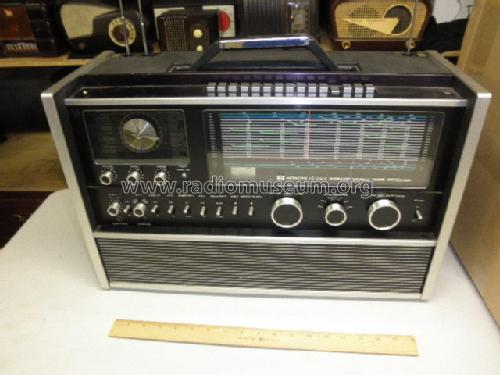

• Model: 20 Band World Wide Receiver KH-5000 - Hitachi Ltd.; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 600 x 450 x 300 mm / 23.6 x 17.7 x 11.8 inch

• Notes
• 20 band all Wave Radio receiver.

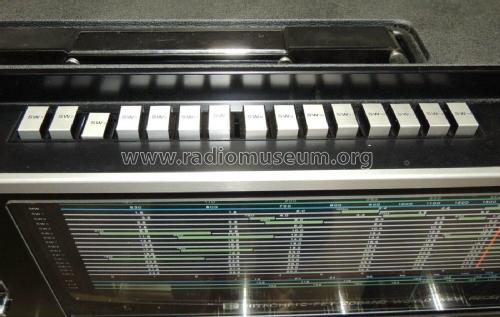

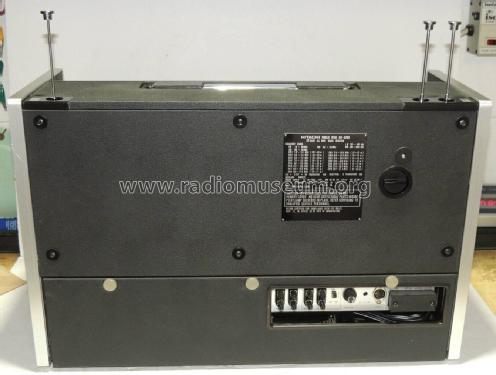

  FM, AIR, VHF, LW, MW, 15 SW bands. (Look photo). Ext. Power jack: DC 12 Volt.

• Net weight (2.2 lb = 1 kg)
• 18.5 kg / 40 lb 12 oz (40.749 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
