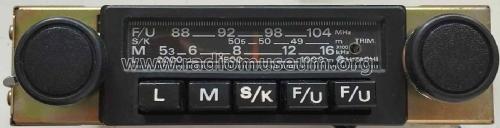

KM-1800

Hitachi Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1977 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 347986
    • alternative name: Hitachi Sales Corp. of America

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5 W (7 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: KM-1800 - Hitachi Ltd.; Tokyo
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 44 x 120 mm / 7.1 x 1.7 x 4.7 inch
  • Notes

  • 4-Band Autoradio, 5 Stationstasten, Klangwaage

    Anschluss für Tonbandgerät oder Verkehrsfunkdecoder

    Polarität umschaltbar

  • Net weight (2.2 lb = 1 kg)
  • 0.950 kg / 2 lb 1.5 oz (2.093 lb)
  • Author
  • Model page created by Marc Gianella. See "Data change" for further contributors.
